MTG Series

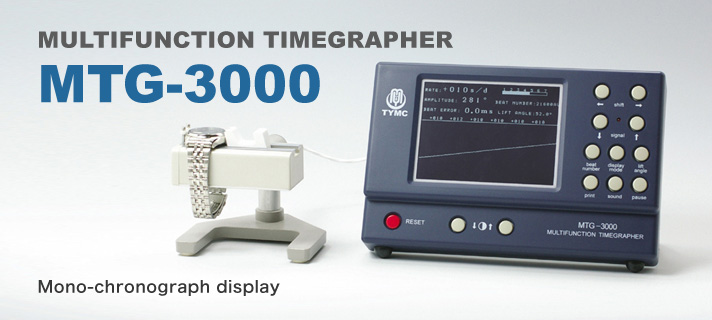

MULTIFUNCTION TIMEGRAPHER MTG-3000
MTG-3000 is a widely used popular model. It has all necessary functions and suitable for general watch-making factories and repair shops.

--- MTG-3000 DISPLAY SAMPLE ---

  • PANEL IMAGE

  • PROGRAM MODE
    TEST RESULT

  • MEASUREMENT
    SCREEN HORIZONTAL

  • MEASUREMENT
    SCREEN VERTICAL

Technical Specifications
Beat Number 18000, 19800, 21600, 25200, 28800, 36000
Range of displayed numerical results and their accuracy Rate : -300 s/d ~ 300 s/d | Accuracy : +/-1 s/d
Amplitude : 100°~345° | Accuracy : +/-3°
Beat error : 0 ~ 4.0 ms | Accuracy : +/-0.1 ms
Length of diagram displayed Horizontal display : 320 dots (320 beats), corresponding to 53 seconds (40 seconds) *
Vertical display: 240 dots (240 beats), corresponding to 40 seconds (30 seconds) *
Data stored 2048 beats, corresponding to 5m41s(4m16s)*
Position tested 1~6 positions
Lift angle 30°~60°, default value : 52°
Power supply single phase, AC90V ~ 250V, two wires
Power consumption about 10W
Weight 1.3kg
Dimension 245mm x 160mm x 110mm
Operating environment Temperature : 0°~50°C
Humidity: 0~85% RH
Notice * : The values outside the parentheses are corresponding watch’s beat number of 21600, the value in the parentheses for beat number 28800.

[ Content ]

Main Machine / microphone / AC adaptor / dustcover / manual

OPTION
Heat Sensitive Printer (for MTG-3000,4000A)

This device is used to print the diagram and numerical data with low noise, high speed and long durability.
