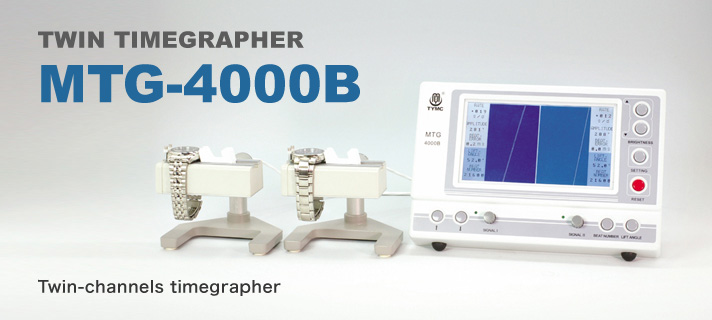

TWIN TIMEGRAPHER MTG-4000B
For this model, two watches with the same beat number and lift angle can be tested at the same time. It is also equipped with large-sized colored LCD screen. The diagram of watch beats and the numerical value for rate, amplitude and beat error can be displayed on the screen respectively for two watched. This model is especially suitable for the watch manufactures.

--- MTG-4000B DISPLAY SAMPLE ---

  • PANEL IMAGE

  • INITIAL SCREEN IMAGE

  • MEASUREMENT SCREEN

Pushing Mode
In the pushing modes, the diagram scrolls from up to down. The new dot is always on the utmost upper and it is latest results. This is visually similar to the paper tape recording timegrapher.It is also possible to use only each side channel.

Technical Specifications
Beat Number 18000, 19800, 21600, 25200, 28800, 36000
Range of displayed numerical results and their accuracy Rate : -300 s/d ~ 300 s/d | Accuracy : +/-1 s/d
Amplitude : 100°~345° | Accuracy : +/-3°
Beat error : 0 ~ 4.0 ms | Accuracy : +/-0.1 ms
Length of diagram displayed 234 dots
Data stored 720beats, corresponding to 120s(90s)*
Position tested 1~6 positions
Lift angle 30°~60°, default value : 52°
Power supply single phase, AC90V ~ 250V, two wires
Power consumption about 10W
Weight 2.4kg
Dimension 260mm x 170mm x 120mm
Operating environment Temperature : 0°~50°C
Humidity: 0~85% RH


[ Content ]

Main Machine / microphone x 2 / AC adaptor / dustcover / manual
