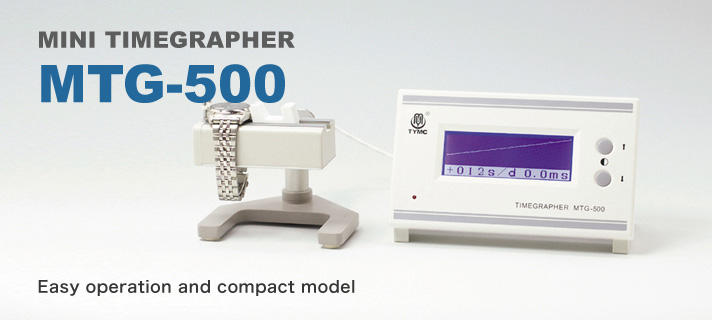

MINI TIMEGRAPHER MTG-500
MTG-500 is a simple and compact model. It is equipped with the same normal microphone as other models.

--- MTG-500 DISPLAY SAMPLE ---

  • PANEL IMAGE

  • STARTUP SCREEN 1

  • STARTUP SCREEN 2

  • MEASUREMENT SCREEN

Pushing Mode
In the pushing modes, the diagram scrolls from left to right. The new dot is always on the utmost left and it is latest results. This is similar to the paper tape recording timegrapher. Displayed measurements are only "rate" and "beat error" except "amplitude".

Technical Specifications
Beat Number 18000, 19800, 21600, 25200, 28800, 36000
Range of displayed numerical results and their accuracy Rate : -300 s/d ~ 300 s/d | Accuracy : +/-2 s/d
Beat error : 0 ~ 4.0 ms | Accuracy : +/-0.1 ms
Length of diagram displayed 192 dots Horizontal display
Data stored 720beats, corresponding to 120s(90s)*
Position tested 1~6 positions
Lift angle 52°
Power supply single phase, AC90V ~ 250V, two wires
Power consumption about 5W
Weight 1.2kg
Dimension W190mm x D110mm x H100mm
Operating environment Temperature : 0°~50°C
Humidity: 0~85% RH


[ Content ]

Main Machine / microphone / AC adaptor / manual
