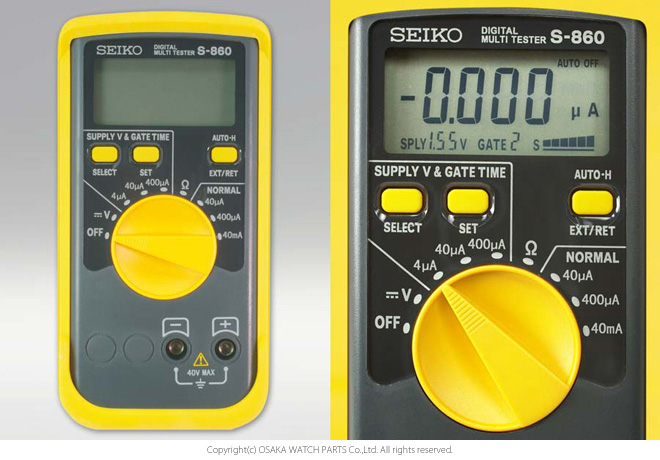

[ Technical specifications ]
Mesurement functions :DC voltage, direct current SUPPLY & GATE(power supply and time integral system),
direct corrent NORMAL (integral system) and resistance.
Additional function : "Auto data hold" function (except for current consumption measurement) and
"Auto power off" function (can be deactivated).
Display : LCD display - Maximum significantreading, 4369 Measurement units(m,V,micro,A,ohm)
Symbol for an over-range condition :
* "OL" (during current consumption measurement)
* "---" 8during resistance measurement)
(No symbol is displayed for the voltage measurement higher than 40V)
Range cahngeover :
Automatic changeover for voltage and resistance measurement.
Manual chageover for current concumption measurement.
Maesuring frequency : 2 times/sec. (except for current consumption measurement)
Operating temperature/humidity range :
0 ~ 40 at less than 80%RH storage temperature range : -20 ~+60
Battery : JIS LR03/ IEC LR03 /ANSI L30 alkaline dry battery, 2 pieces
Battery life :
Approx. 200 hours (if the multi-tester is used continuouslyusing alkaline dry batteries)
Time before "Auto power off" : 20 minutes after the function switch is operated last.
Dimension :Apporox. 74(W) x 155(H) x 30(D) mm
Weght: Approx 380g
Conforming to the EMC standard(CE marking):
EMI (interfering wave) EN55011; 1998 & EN61326-1: EN61326:1998+A1 (class B.Group 1)
EMS (immunity) EN50082-1; 1997 & EN61326-1 : EN61326:1998+a1
infuluence of radiation immunity (less than 10% of yhe maximum resding-400)
safty applicable standard (CE marking): EN61010-1 (+/-60VDC,CAT.1) ROHS; ROHS applicable product

[ Content ]
Test probes (RED and BLACK) x 1set
spare tube (500mA / 250V) x 1
Rubber case with stand x 1
Dry battery x 2
Instraction manual
